Care Label Printer
3-Color machine, with a 4 inch head and 300dpi

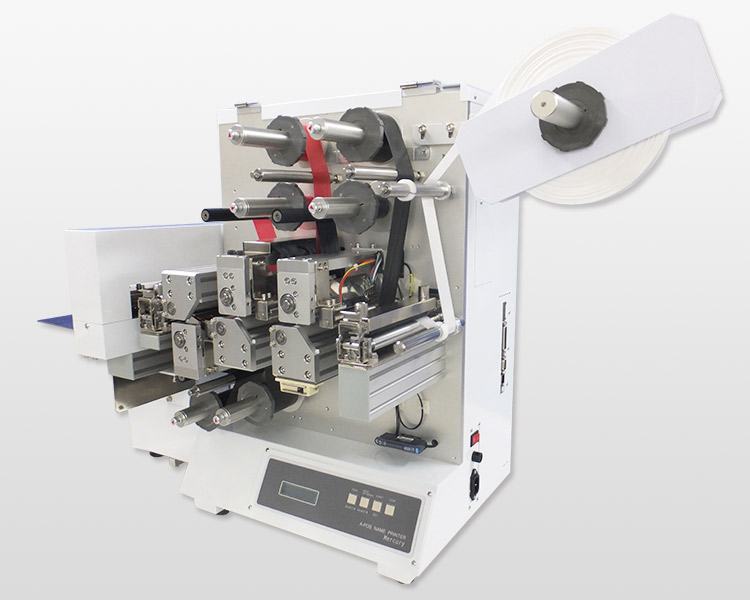

Mercury430Ⅲ
Best for laundry care directions and manufacturing content, this tri-color (front 2 colors, back 1 color) care label printer prints clearly, is easy to operate, economical, and eco-friendly.
Main Features
- Easy to Change Ink Ribbon and Tape
- 機Just line them up with the back of the machine to set!
Ribbon of all sizes can be easily changed. - Highly Economical Ribbon Saving Feature
- Ribbon consumption is automatically economized, implementing savings.
Its full-range functions provide one step toward your economic strategy by saving costs. - Plenty of Options
- There are many additional options available to fit various needs.
※Cutter is optional.
Click on the picture to enlarge it
Ultrasonic Cutter Version
- ・Auto stacker
- ・LAN interface
- ・Mark sensor
- ・400dpi Thermal head
- ・2 inch Thermal head
- ・5 inch Thermal head
- ・Cold cutter
- ・Ultrasonic cutter
- ・Front cover
- ・Coiler
Printer Specification
| Printer Specifications | MERCURY230Ⅲ (2inch) | MERCURY430Ⅲ (4inch) | MERCURY530Ⅲ (5inch) | MERCURY440Ⅲ (4inch) |
|---|---|---|---|---|
| Printing Method | Thermal Transfer printing | |||
| Printing Area | (W)50mm × (L)300mm | (W)100mm × (L)300mm | (W)127mm × (L)300mm | (W)100mm × (L)300mm |
| Dot Density / Printing Resolution | 300dpi | 300dpi | 300dpi | 400dpi |
| Printing Speed | 4 fixed levels: 80mm/sec, 100mm/sec, 120mm/sec, 150/sec | |||
| Character Font | Based on Software | |||
| Barcode | JAN8, JAN13, EAN8, EAN13, ITF, NW-7, CODE39, CODE93, CODE128, QR code, PDF417 |
|||
| Interface | Standard equipment: USB, Serial (RS232C), Parallel (Centronics) ※Optional: LAN connector |
|||
| SD Card Slot | Standard Equipment | |||
| CPU Connection | Operating Clock: 200MHz | |||
| Printer Internal Memory | 16MBytes | |||
| Head Pressure Adjustment | 3 level adjustment | |||
| Correcting Function for Head Resistance | Available | |||
| Cutter | Rotary cutter / Ultrasonic cutter (available to choose) | |||
| Ribbon Tension Adjustment | Automatic torque control | |||
| Printing Quantity Display | Change between addition and deduction | |||
| Panel Display | Change between Japanese and English | |||
| Power Voltage | 100V-240V(50Hz/60Hz) overseas compatible | |||
| Body Size | (W)430mm×(D)440mm×(H)680mm(body only, measurement excludes cutter and tape holder) | |||
| Machine Weight | Body/48kg (rotary cutter/12kg) | |||
