Venus217RFID

Single Tag RFID Printer

High speed encoding: Printing, data entry and IC data verification is performed at high speed without stopping of the tags. *In-house measurements: 50 sheets per minute
Eject function: Problematic tags are immediately, automatically rejected, and the information is re-printed and re-encoded on the next tag.
Antenna adjustments are not needed: Using a specialized antenna, the need for antenna adjustment for each tag is circumvented.
Data management: As well as verification information being displayed on the large screen, extraction to external sources is possible.
MarginRead function (For use with MonzaR6 Series of IC chips): “Bit flip prevention” is also installed – a first for the Japanese market.

Click on the picture to enlarge it

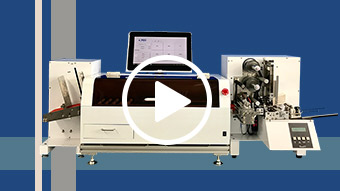

RFID Printer: Venus217RFID
Printing Method: Thermal transfer/ Direct thermal
Dot Density: 12Dot/mm (300DPI)
Print Speed: 150-200mm/sec.
Paper Size: (W)35～100mm (L)50mm～150mm
Paper Thickness: 0.2-0.8mm
RFID frequency: Domestic and international regions compliant
RFID output: Domestic and overseas countries allowable maximum output value correspondence
Corresponding RFID Protocol: EPC Global Class Gen2(ISO/IEC18000-6 TypeC)
Interface: USB2.0 Serial Parallel
Input Power: AC100V～240V
Body Size: (W) 145cm×(D) 45cm×(T) 50～65cm
Weight: 55kｇ
